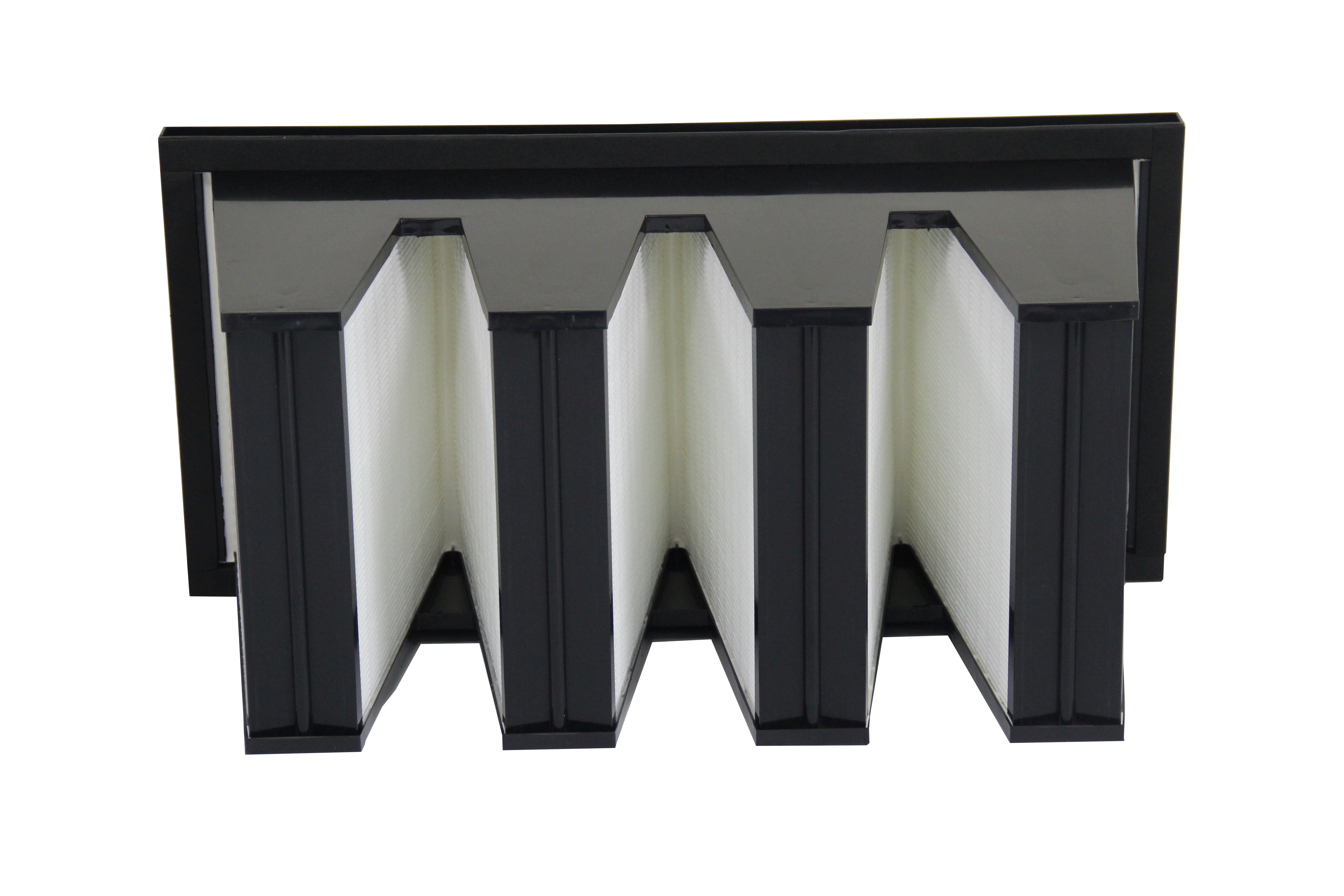

ABS Plastic Frame V Bank Filter with large air volume
1, Main features:
Long service life, large rated air flow, low resistance, large amount of dust capacity, etc.
2, Some standard sizes in my factory:
(Note: We can also produce the costomized sizes as your required)
| Model | Outside dimensions
(mm) | Rated air flow
(m3/h) | Initial resistance
(Pa) | Efficiency | Filter materials |
| XN-YGX2V-8J | 287*287*292 | 800 | ≤ 125 | 95%(F8)/99%(F9) | Polyester Fiber (PP)
Glass Fiber |
| XN-YGX3V-12J | 490*287*292 | 1200 | ≤ 125 | 95%(F8)/99%(F9) |
| XN-YGX3V-20J | 490*490*292 | 2000 | ≤ 125 | 95%(F8)/99%(F9) |
| XN-YGX3V-20J | 592*490*292 | 2000 | ≤ 125 | 95%(F8)/99%(F9) |
| XN-YGX4V-22J | 592*490*292 | 2700 | ≤ 125 | 95%(F8)/99%(F3) |
| XN-YGX4V-16J | 592*287*292 | 1600 | ≤ 125 | 95%(F8)/99%(F9) |
| XN-YGX3V-22J | 592*592*292 | 2400 | ≤ 125 | 95%(F8)/99%(F9) |
| XN-YGX4V-32J | 592*592*292 | 3200 | ≤ 125 | 95%(F8)/99%(F9) |
For pharmaceutical or hospital operating room the v shape filter is quite necessary because those industries have many big size cleanroom. It means the airflow for HVAC system is quite large also.
Normally the pocket filter cannot meet all the strict requirement for HVAC system filtration. The turbulence airflow make pocket filter perform badly and pocket filter cannot be used in moist environment.
V shape filter is an ideal filter for high air flow rate and high humidity HVAC system, mini pleated design make the filter area large enough to provide low resistance and high dust holding ability.
Plastic ABS frame can be stand high velocity and won`t be deformed or broken easily.
Applications:
For pharmaceutical or hospital operating room, LED, micron electronics, food processing and other industries and so on;
Specifications:
Glass fiber or polyester media
ABS plastic frame
Neoprene gasket
Polyurethane sealant
F6, F7, F8, F9 or MERV 14, 15 available, customized efficiency
