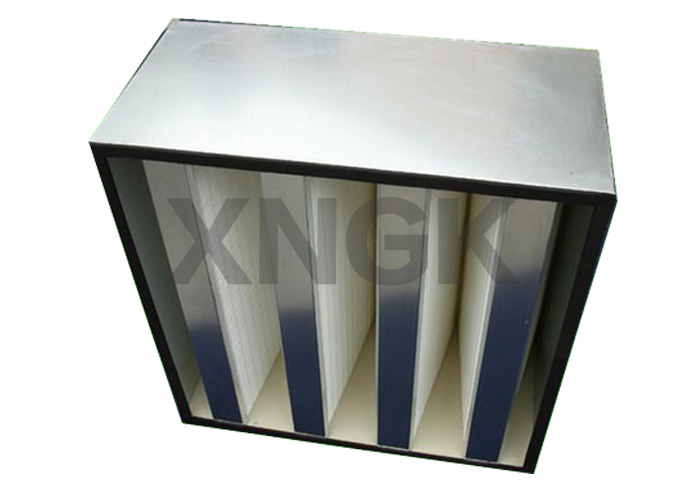

V Bank Hepa Replacement Air Filters Industrial U15 Efficiency Hot - Melt Separator

Name: V Bank Hepa Replacement Air Filters Industrial U15 Efficiency Hot Melt Separator
Brand: XNGK
Price: 1 USD

Wholesale V Bank Hepa Replacement Air Filters Industrial U15 Efficiency Hot - Melt Separator from china suppliers

Brand Name : XNGK

Model Number : XN-HV

Certification : CE ROHS

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : Western Union, T/T

Supply Ability : 1000 sets per month

Delivery Time : 10 - 20 working days

Packaging Details : Plastic bag inside, carton box outside, wooden case if required

Frame : ABS Plastic, SUS, Gal, AL board

Filter media : Glass fiber HV

Filter Efficiency : H13 H14 EN:1822

Application : HVAC terminal filter

Final pressure drop : 600 Pa

Separator : hot-melt

Gasket : Neoprene

Contact Now

V Bank HEPA Filter H13 H14 U15 Efficiency Glass Fiber Media EN:1822

Air Pressure drop and air flow rate data Sheet for V Bank HEPA Filter:

Size	Efficiency	Air Flow Rate	Pressure drop
610610292 mm - 5V	H13	3600 m³/h	250 Pa
310610292 mm - 5V	H13	1800 m³/h	250 Pa
595595292 mm - 5V	H13	3000 m³/h	250 Pa
287595292 mm - 5V	H13	1500 m³/h	250 Pa
610610292 mm- 4V	H13	3200 m³/h	250 Pa
310610292 mm- 4V	H13	1600 m³/h	250 Pa
595595292 mm- 4V	H13	2800 m³/h	250 Pa
287595292 mm- 4V	H13	1400 m³/h	250 Pa

Pressure drop range: ±15%

According to clients` requirements offer different specifications

Construction:

1. frame: metal or plastic ( stainless steel, galvanized steel, aluminum board )

2. filter media: glass fiber HV company 99.97% and 99.99%;

3. Endless Neoprene gasket;

4. Full use of polyurethane sealant;

5. hot-melt separator;

Features:

1. high air flow;

2. large dust holding;

3. low resistance;

4. longer service life;

5. strong frame;

6. good performance;

7. wide range efficiency;

8. OEM available;

For using environment:

1. 100% humidity;

2. 80℃ temperature;

3. low dust ventilation that medium filtration are necessary;

Applications:

Pharmaceutical, medicine industries, food, beverage, micron electric, lab, LED, unclear, air filter ventilation system terminal filtration;
