3V / 4V Design Water Resistant Electronic Air Filter , H14 HEPA Filter 99.99% MPPS

Name: 3V 4V Design Water Resistant Electronic Air Filter H14 HEPA Filter 9999 MPPS
Brand: XNGK
Price: 1 USD

Wholesale 3V / 4V Design Water Resistant Electronic Air Filter , H14 HEPA Filter 99.99% MPPS from china suppliers

Brand Name : XNGK

Model Number : XN-HV

Certification : CE ROHS

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : Western Union, T/T

Supply Ability : 1000 sets per month

Delivery Time : 10 - 20 working days

Packaging Details : Plastic bag inside, carton box outside, wooden case if required

Frame : ABS Plastic, SUS, Gal, AL board

Filter media : Glass fiber HV

Filter Efficiency : H13 H14 EN:1822

Application : HVAC terminal filter

Final pressure drop : 600 Pa

Separator : hot-melt

Gasket : Neoprene

Contact Now

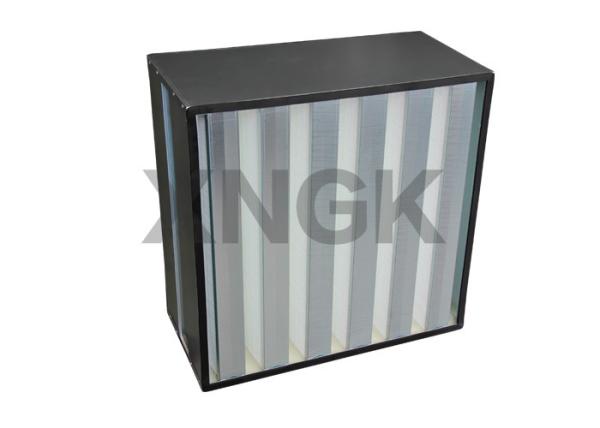

For Electronics Cleanroom High Volume HEPA Filter 99.99% MPPS

For big size electronics cleanroom the air flow rate is quite large, in order to meet the high air volume requirements, the HEPA filters should be more filter area; normally deep pleated HEPA filter cannot offer enough filter area for that. The high volume HEPA filter is V cell design that can maximize the filter area and mini pleated design also enlarge the filter area. For examples, the 610*610*292mm 5V design high volume HEPA filter, filter area reach to 40㎡.

This high volume HEPA filter mainly used in large size cleanroom such as micron electronics, food processing, pharmaceutical industries and so on;

Specifications:

Frame: galvanized steel, aluminum board, stainless steel;

Efficiency: customized, from F8 to H14 available;

Construction: 3V, 4V, 5V, 6V design;

Header: box design or flange type;

Filter material: glass fiber HV company;

Sealant: polyurethane;

Gasket: neoprene;

3V / 4V Design Water Resistant Electronic Air Filter , H14 HEPA Filter 99.99% MPPS
